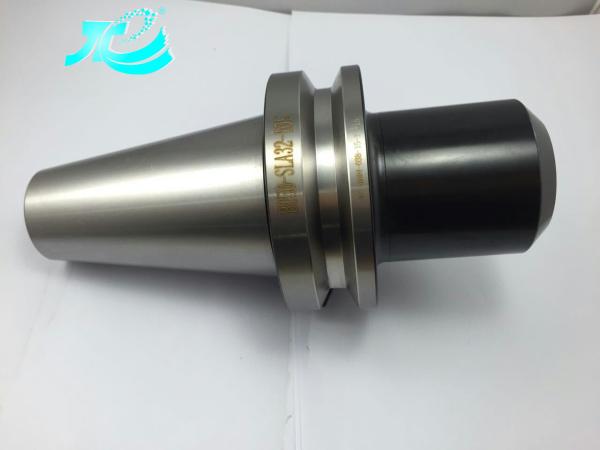

CNC Milling Tool Holder BT50-SLA32-105 Collet Flexible Collet ER
Holder
Product Description:
Material: JIS SNCM220
Use on milling and drilling
Hardness: HRC56-58°
Taper tolerance:<AT3
Carbon depth: <0.8mm
Surface Roughness: Ra<0.005mm
Max run out: <0.005mm
Shank body standard: MAS 403 and B6339
Pre-balanced by design (8000rpm/G6.3), Through tool holder coolant
capability
Fine balancing can be customed on demand (12000rpm/G6.3 ,
30000rmp/G2.5)
With through hole for internal and flange coolant (AD/B) design can
be customed on demand
USE:
For clamping tools with cylindrical shank in Collets according to
DIN 6499
Included in delivery: Clamping nut.
Please guarantee that the clamping the tool hangs extends is short
Factory dvantage:
More than five years production experence
Have more than 20 sets of CNC machine center
Large in stock qty
Made from 100% virgin raw material
Everyone goods go through strict quality inspection
Product Advantage :
Grain size carbon tungsten has high toughness, ALTIN coating , high
wear-resistance , special use for high speed cutting of CNC milling
machine , also can increase the smoothness , reduce the rubbing
coefficient m and improve the lathe efficiency m save more
production time
Tool Rigidity and good chip discharge , the most suitable for
high-precision three- dimensional mold machining.
All size:
| Type NO. | Range(d) | L | L1 | D |
| BT30-SSK06-60 | 2-6 | 60 | 40 | 19.05 |
| BT30-SSK06-90 | 2-6 | 90 | 70 |
| BT30-SSK10-60 | 2-10 | 60 | 33 | 29 |
| BT30-SSK10-90 | 2-10 | 90 | 60 |
| BT30-SSK13-60 | 3-13 | 60 | 40 | 33 |
| BT30-SSK13-75 | 3-13 | 75 | 55 |
| BT30-SSK13-90 | 3-13 | 90 | 70 |
| BT30-SSK16-60 | 3-16 | 60 | 33 | 40.5 |
| BT30-SSK16-90 | 3-16 | 90 | 63 |
| BT30-SSK20-60 | 4-20 | 60 | 33 | 51 |
| BT30-SSK20-80 | 6-25 | 80 | 53 |
| BT40-SSK06-60 | 2-6 | 60 | 35 | 19.5 |
| BT40-SSK06-90 | 2-6 | 90 | 65 |
| BT40-SSK06-120 | 2-6 | 120 | 95 |
| BT40-SSK10-60 | 2-10 | 60 | 33 | 29 |
| BT40-SSK10-90 | 2-10 | 90 | 63 |
| BT40-SSK10-120 | 2-10 | 120 | 93 |
| BT40-SSK10-150 | 2-10 | 150 | 123 |
| BT40-SSK13-60 | 3-13 | 60 | 35 | 33 |
| BT40-SSK13-80 | 3-13 | 80 | 55 |
| BT40-SSK13-100 | 3-13 | 100 | 75 |
| BT40-SSK13-120 | 3-13 | 120 | 95 |
| BT40-SSK13-150 | 3-13 | 150 | 125 |
| BT40-SSK16-60 | 3-16 | 60 | 33 | 40.5 |
| BT40-SSK16-90 | 3-16 | 90 | 63 |
| BT40-SSK16-120 | 3-16 | 120 | 93 |
| BT40-SSK16-150 | 3-16 | 150 | 123 |
| BT40-SSK20-60 | 4-20 | 60 | 33 | 51 |
| BT40-SSK20-90 | 4-20 | 90 | 63 |
| BT40-SSK20-120 | 4-20 | 120 | 93 |
| BT40-SSK20-150 | 4-20 | 150 | 123 |
| BT40-SSK25-80 | 4-25 | 80 | 53 | 56.5 |
| BT40-SSK25-120 | 6-25 | 120 | 93 |
| BT50-SSK06-100 | 2-6 | 100 | 65 | 19.5 |
| BT50-SSK10-105 | 2-10 | 105 | 78 | 29 |
| BT50-SSK10-135 | 2-10 | 135 | 108 |
| BT50-SSK10-165 | 2-10 | 165 | 138 |
| BT50-SSK13-100 | 3-13 | 100 | 65 | 33 |
| BT50-SSK13-130 | 3-13 | 130 | 95 |
| BT50-SSK13-150 | 3-13 | 150 | 115 |
| BT50-SSK16-105 | 3-16 | 105 | 78 | 40.5 |
| BT50-SSK16-135 | 3-16 | 135 | 108 |
| BT50-SSK16-165 | 3-16 | 165 | 138 |
| BT50-SSK20-105 | 4-20 | 105 | 78 | 51 |
| BT50-SSK20-135 | 4-20 | 135 | 108 |
| BT50-SSK20-165 | 4-20 | 165 | 138 |
| BT50-SSK25-105 | 6-25 | 105 | 78 | 56.5 |
| BT50-SSK25-135 | 6-25 | 135 | 108 |
| BT50-SSK25-165 | 6-25 | 165 | 138 |
For more information , please contact us !
