Solid Carbide Four Flute End Mill , Square 45 Helix High Hardness
End Mill
Description
The tungsten carbide end mill is one of several types of milling
tools that are commonly used. Tungsten carbide end mills are
distinguished from other types because they have cutting teeth at
one end as well as on the sides. Tungsten carbide end mills also
have one or more “flutes,” meaning deep helical grooves that run up
and down the cutter.
We use 100% original raw material, the micro grain tungsten carbide
powder and cobalt powder(from German)to make the carbide rod,
hardness can be 92.5-94.0(HRA), and T.R.S. is 4200-4800(N/mm2),
this carbide rod can ensure the end mills with very strong abrasive
resistance and impact strength.
Original raw micro grain material, high hardness and T.R.S.
1, Co: 10-12%, WC: 88-90%,
Grain size: 0.4μm,
Hardness: 92.5-94.0 HRA,
T.R.S.: 4200-4800 N/mm2,
Density: 14.3-14.8 G/cm3
2, We got 250T Extruder, 10MPa Overpressure Sintering
Furnace-Vacuum
Dewaxing, these two equipments are very very important for
manufacture and high quality carbide rods.
3, We use our own carbide rod for 90% of cutting tools.
4, We have introduced advanced CNC grinding machines in
operating,Rollomatic,Schneeberger from Switzerland, ANCA from
Australia, Zoller from German,KEYENCE from Japan,set up(Japan
FANUC, brother processing center) tool laboratory test cut.Our
technology from Taiwan. Guarantee high precision and good
performance.
5, Helix Angle: 38-42 °(we could do 4 of them are 37°)
Diameter of cutting edge: 1.0-25.0mm
Diameter of rods: 4-25mm
Length: 50-100mm
Cutting Form: Ball nose, Corner Radius, Taper Flute, etc.
Flutes No.: 4
Super coating
TiAN,TiCN TiN and ARCO ,
improve tool life, reduce the coefficient of friction.
Applications
Copper, Aluminium Alloy , Cast Iron, Carbon steel, Tool steel,
Mould steel, Die steel, Stainless steel, Plastic, Arcylic, etc.
Price Performance Ratio
From tungsten powder to end mills, that's the reason of our
competitiveness!
Make sure about each piece end mill has a good quality,high
precision and good performance.
More discount will be offered according to exact quantity.
Welcome to be our agents, OEM is also available.
Specifications:
| Model NO. | Diameter/D1 | Flute Length/L1 | O.A.L/L3 | Shank Dia/D2 | Flute |
JTS4010 | 1.0 | 3 | 50 | 4 | 4 |
JTS4012 | 1.2 | 3 | 50 | 4 | 4 |
JTS4015 | 1.5 | 4 | 50 | 4 | 4 |
JTS4015-75 | 1.5 | 4 | 75 | 4 | 4 |
JTS4020 | 2.0 | 5 | 50 | 4 | 4 |
JTS4020-75 | 2.0 | 5 | 75 | 4 | 4 |
JTS4025 | 2.5 | 7 | 50 | 4 | 4 |
JTS4025-75 | 2.5 | 7 | 75 | 4 | 4 |
JTS4030-3 | 3.0 | 8 | 50 | 3 | 4 |
JTS42030 | 3.0 | 8 | 50 | 4 | 4 |
JTS4030-75 | 3.0 | 8 | 75 | 4 | 4 |
JTS4030-100 | 3.0 | 8 | 100 | 4 | 4 |
JTS4035 | 3.5 | 10 | 50 | 4 | 4 |
JTS4040 | 4.0 | 10 | 50 | 4 | 4 |
JTS4040-75 | 4.0 | 10 | 75 | 4 | 4 |
JTS4040-100 | 4.0 | 10 | 100 | 4 | 4 |
JTS4045 | 4.5 | 13 | 50 | 6 | 4 |
JTS4050-5 | 5.0 | 13 | 50 | 5 | 4 |
JTS4050 | 5.0 | 13 | 50 | 6 | 4 |
JTS4055 | 5.5 | 13 | 50 | 6 | 4 |
JTS4060 | 6.0 | 15 | 50 | 6 | 4 |
JTS4060-75 | 6.0 | 15 | 75 | 6 | 4 |
JTS4060-100 | 6.0 | 15 | 100 | 6 | 4 |
JTS4070 | 7.0 | 17 | 60 | 8 | 4 |
JTS4080 | 8.0 | 20 | 60 | 8 | 4 |
JTS4080-75 | 8.0 | 20 | 75 | 8 | 4 |
JTS4080-100 | 8.0 | 20 | 100 | 8 | 4 |
JTS4090 | 9.0 | 25 | 75 | 10 | 4 |
JTS4100 | 10.0 | 25 | 75 | 10 | 4 |
JTS4100-100 | 10.0 | 25 | 100 | 10 | 4 |
JTS4110 | 11.0 | 28 | 75 | 12 | 4 |
JTS4120 | 12.0 | 30 | 75 | 12 | 4 |
JTS4120-100 | 12.0 | 30 | 100 | 12 | 4 |
JTS4120-150 | 12.0 | 30 | 150 | 12 | 4 |
JTS4140 | 14.0 | 35 | 100 | 14 | 4 |
JTS4160 | 16.0 | 40 | 100 | 16 | 4 |
JTS4160-150 | 16.0 | 40 | 150 | 16 | 4 |
JTS4180 | 18.0 | 40 | 100 | 18 | 4 |
JTS4200 | 20.0 | 45 | 100 | 20 | 4 |
JTS4250 | 25.0 | 45 | 100 | 25 | 4 |

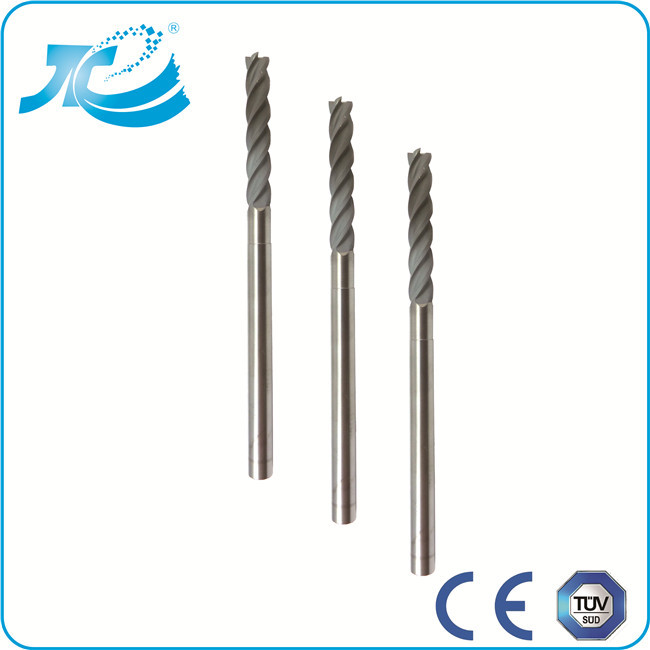

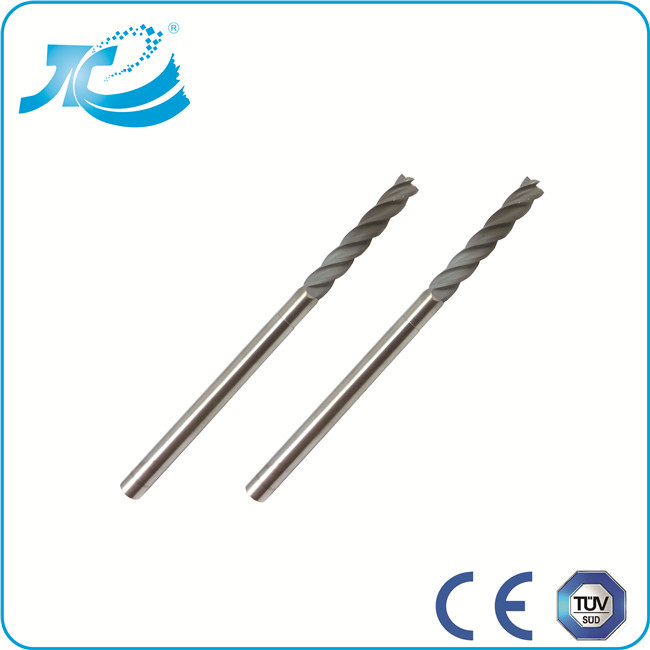

Products display
