HRC 55 High Feed End Mills For Stainless Steel Solid Carbide Cutter Tool

Description

Suitable for most of materials.General Purpose as Coating.Conventional or High Speed Milling, Wet or Dry Cutting.

General milling operation, Slotting, Side cutting, Machining die cavity give you increased productivity and decreased tooling cost with satisfaction.Suitable for dry milling applications at high temperatures.

We use 100% original raw material, the micro grain tungsten carbide powder and cobalt powder(from German)to make the carbide rod, hardness can be 92.5-94.0(HRA), and T.R.S. is 4200-4800(N/mm2), this carbide rod can ensure the end mills with very strong abrasive resistance and impact strength.

Original raw micro grain material, high hardness and T.R.S.

1, Co: 10-12%, WC: 88-90%,
Grain size: 0.4μm,
Hardness: 92.5-94.0 HRA,
T.R.S.: 4200-4800 N/mm2,
Density: 14.3-14.8 G/cm3

2, We got 250T Extruder, 10MPa Overpressure Sintering Furnace-Vacuum
Dewaxing, these two equipments are very very important for manufacture and high quality carbide rods.

3, We use our own carbide rod for 90% of cutting tools.

4, We have introduced advanced CNC grinding machines in operating,Rollomatic,Schneeberger from Switzerland, ANCA from Australia, Zoller from German,KEYENCE from Japan,set up(Japan FANUC, brother processing center) tool laboratory test cut.Our technology from Taiwan. Guarantee high precision and good performance.

5, Helix Angle: 38-42 °(we could do 4 of them are 37°)
Diameter of cutting edge:1-25mm
Diameter of rods: 4-25mm
Length: 50-100mm
Cutting Form: Ball nose, Corner Radius, Taper Flute, etc.
Flutes No.: 2-6

Super coating

TiAN,TiCN TiN and ARCO ,
improve tool life, reduce the coefficient of friction.

Applications

For Stainless steel Only

Price Performance Ratio

From tungsten powder to end mills, that's the reason of our competitiveness!
Make sure about each piece end mill has a good quality,high precision and good performance.
More discount will be offered according to exact quantity.
Welcome to be our agents, OEM is also available.

Specifications:

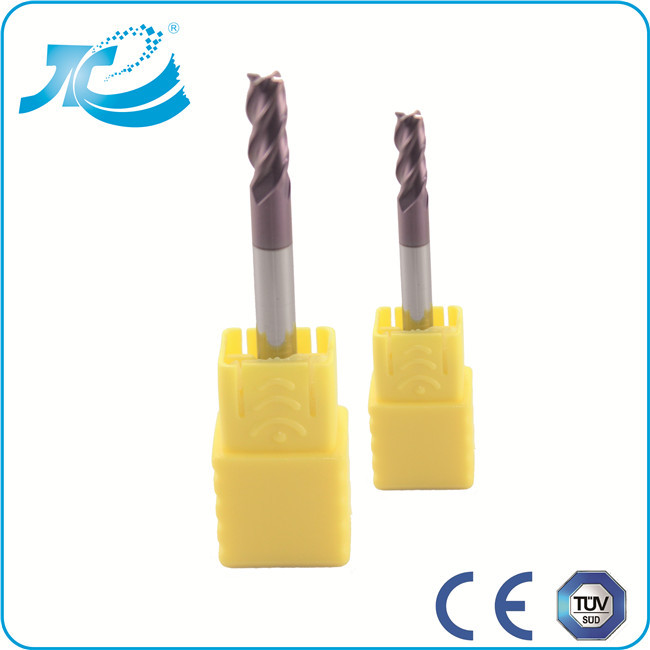

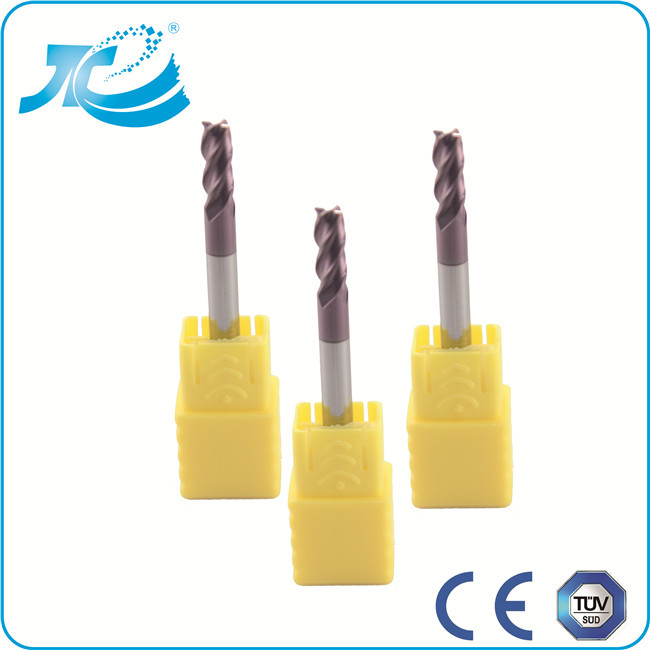

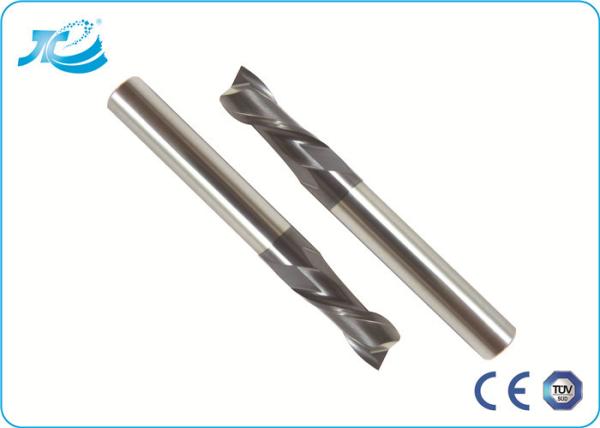

Products display

Dongguan Diamond Hardware Factory was founded in 2010,which is one of the most professional Solid Carbide Tool manufacturer. We specialize in designing,developing and manufacturing various of precision indexable cutting tools. We also produce the customization products according to customers’ demands,such as Aerospace,Medical,Automotive,Mechanical,Mold & Die,Electronic Industries and customized tool. No matter what application or industry you are serving,we are sure that Diamond can offer you the most suitable and outstanding quality tools with competitive price.
