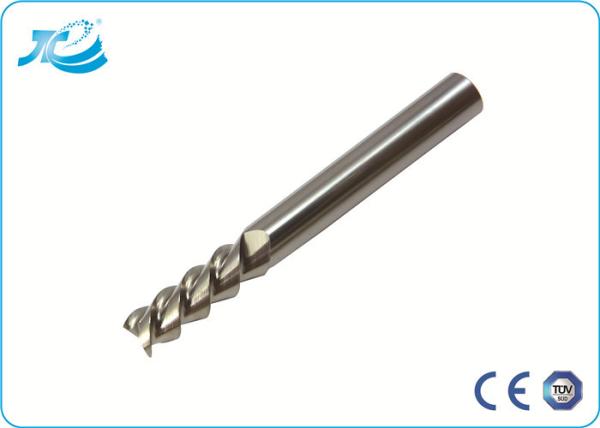

High Hardness CNC Lathe End Mill for Aluminum Alloy , 16mm 18mm End
Mill
Description
High-speed steel is compatible with a variety of materials: easy
cutting steels, steels,stainless steels,cast iron,aluminum
alloy,copper alloy,graphite,wood,GERP. 2-3 flutes are offered; fewer flutes have more chip-carrying
capacity and more flutes could save more time
We use 100% original raw material, the micro grain tungsten carbide
powder and cobalt powder(from German)to make the carbide rod,
hardness can be 92.5-94.0(HRA), and T.R.S. is 4200-4800(N/mm2),
this carbide rod can ensure the end mills with very strong abrasive
resistance and impact strength.
Original raw micro grain material, high hardness and T.R.S.
1, Co: 10-12%, WC: 88-90%,
Grain size: 0.4μm,
Hardness: 92.5-94.0 HRA,
T.R.S.: 4200-4800 N/mm2,
Density: 14.3-14.8 G/cm3
2, We got 250T Extruder, 10MPa Overpressure Sintering
Furnace-Vacuum
Dewaxing, these two equipments are very very important for
manufacture and high quality carbide rods.
3, We use our own carbide rod for 90% of cutting tools.
4, We have introduced advanced CNC grinding machines in
operating,Rollomatic,Schneeberger from Switzerland, ANCA from
Australia, Zoller from German,KEYENCE from Japan,set up(Japan
FANUC, brother processing center) tool laboratory test cut.Our
technology from Taiwan. Guarantee high precision and good
performance.
5, Helix Angle: 38-42 °(we could do 4 of them are 37°)
Diameter of cutting edge: 1.0-25.0mm
Diameter of rods: 4-25mm
Length: 50-100mm
Cutting Form: Ball nose, Corner Radius, Taper Flute, etc.
Flutes No.: 2-6
Super coating
Non.
Applications
For Aluminum Alloy Only
Price Performance Ratio
From tungsten powder to end mills, that's the reason of our
competitiveness!
Make sure about each piece end mill has a good quality,high
precision and good performance.
More discount will be offered according to exact quantity.
Welcome to be our agents, OEM is also available.
Specifications:
Model NO. | Diameter/D1 | Flute Length/L1 | O.A.L/L3 | Shank Dia/D2 |
JTG2010 | 1.0 | 3 | 50 | 4 |
JTG2012 | 1.2 | 3 | 50 | 4 |
JTG2015 | 1.5 | 4 | 50 | 4 |
JTG2015-75 | 1.5 | 4 | 75 | 4 |
JTG2020 | 2.0 | 5 | 50 | 4 |
JTG2020-75 | 2.0 | 5 | 75 | 4 |
JTG2025 | 2.5 | 7 | 50 | 4 |
JTG2025-75 | 2.5 | 7 | 75 | 4 |
JTG2030-3 | 3.0 | 8 | 50 | 3 |
JTG2030 | 3.0 | 8 | 50 | 4 |
JTG2030-75 | 3.0 | 8 | 75 | 4 |
JTG2030-100 | 3.0 | 8 | 100 | 4 |
JTG2035 | 3.5 | 10 | 50 | 4 |
JTG2040 | 4.0 | 10 | 50 | 4 |
JTG2040-75 | 4.0 | 10 | 75 | 4 |
JTG2040-100 | 4.0 | 10 | 100 | 4 |
JTG2045 | 4.5 | 13 | 50 | 6 |
JTG2050-5 | 5.0 | 13 | 50 | 5 |
JTG2050 | 5.0 | 13 | 50 | 6 |
JTG2055 | 5.5 | 13 | 50 | 6 |
JTG2060 | 6.0 | 15 | 50 | 6 |
JTG2060-75 | 6.0 | 15 | 75 | 6 |
JTG2060-100 | 6.0 | 15 | 100 | 6 |
JTG2070 | 7.0 | 17 | 60 | 8 |
JTG2080 | 8.0 | 20 | 60 | 8 |
JTG2080-75 | 8.0 | 20 | 75 | 8 |
JTG2080-100 | 8.0 | 20 | 100 | 8 |
JTG2090 | 9.0 | 25 | 75 | 10 |
JTG2100 | 10.0 | 25 | 75 | 10 |
JTG2100-75 | 10.0 | 25 | 100 | 10 |
JTG2100-100 | 11.0 | 28 | 75 | 12 |
JTG2120 | 12.0 | 30 | 75 | 12 |
JTG2120-100 | 12.0 | 30 | 100 | 12 |
JTG2120-150 | 12.0 | 30 | 150 | 12 |
JTG2140 | 14.0 | 35 | 100 | 14 |
JTG2160 | 16.0 | 40 | 100 | 16 |
JTG2160-150 | 16.0 | 40 | 150 | 16 |
JTG2180 | 18.0 | 40 | 100 | 18 |
JTG2200 | 20.0 | 45 | 100 | 20 |
JTG2250 | 25.0 | 45 | 100 | 25 |
Products display
