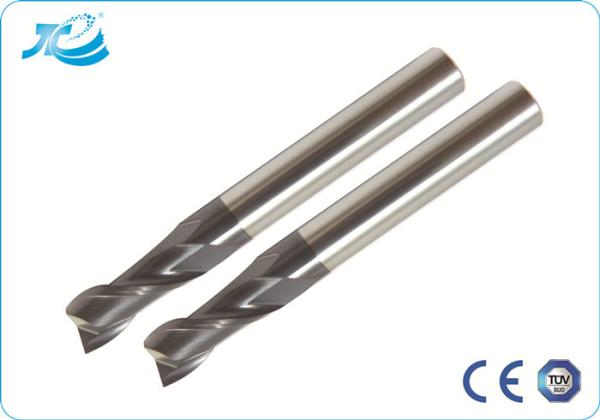

55 Hardness Square End Mill , Two Flute End Mill OEM Service
Our Advantages:
1.Higher hardness,higher wear resistance,higher toughness,better
deflection and fracture resistance,results in a long life and good
size accuracy.
2.Custom oriented tool designing,innovated from Germany
technology,based on 100% custom's satisfaction motto.
3.Abundant tool choices,suitable for every aspect of today's
routing work requirements.
4.Fully automatic manufacturing with famous Switzerland facilities
under tough process control.
5.Critial quality inspection control under the criteria of ISO.
Description:
Original raw micro grain material, high hardness and T.R.S.
1, Co: 10-12%, WC: 88-90%,
Grain size: 0.2-0.6μm,
Hardness: 92.5-94.0 HRA,
T.R.S.: 4200-4800 N/mm2,
Density: 14.3-14.8 G/cm3
2, We got 250T Extruder, 10MPa Overpressure Sintering
Furnace-Vacuum
Dewaxing, these two equipments are very very important for
manufacture and high quality carbide rods.
3, We use our own carbide rod for 90% of cutting tools.
4, We have introduced advanced CNC grinding machines in
operating,Rollomatic,Schneeberger from Switzerland, ANCA from
Australia, Zoller from German,KEYENCE from Japan,set up(Japan
FANUC, brother processing center) tool laboratory test cut.Our
technology from Taiwan.Guarantee high precision and good
performance.
5, Helix Angle: 38-42 °(we could do 4 of them are 37°)
Diameter of cutting edge: 1-25mm
Diameter of rods: 4-25mm
Length: 50-150mm
Cutting Form: Ball nose, Corner Radius, Taper Flute, etc.
Flutes No.: 2-6
Super coating:
TiSiN TiAlN AlTiN or TiCN ,
improve tool life, reduce the coefficient of friction.
Applications:
Copper, Aluminium Alloy , Cast Iron, Carbon steel, Tool steel,
Mould steel, Die steel, Stainless steel, Plastic, Arcylic, etc.
Price Performance Ratio
From tungsten powder to end mills, that's the reason of our
competitiveness!
Make sure about each piece end mill has a good quality,high
precision and good performance.
More discount will be offered according to exact quantity.
Welcome to be our agents, OEM is also available.
Specifications:
Model NO. | Diameter/D1 | Flute Length/L1 | O.A.L/L3 | Shank Dia/D2 |
JT2010 | 1.0 | 3 | 50 | 4 |
JT2012 | 1.2 | 3 | 50 | 4 |
JT2015 | 1.5 | 4 | 50 | 4 |
JT2015-75 | 1.5 | 4 | 75 | 4 |
JT2020 | 2.0 | 5 | 50 | 4 |
JT2020-75 | 2.0 | 5 | 75 | 4 |
JT2025 | 2.5 | 7 | 50 | 4 |
JT2025-75 | 2.5 | 7 | 75 | 4 |
JT2030-3 | 3.0 | 8 | 50 | 3 |
JT2030 | 3.0 | 8 | 50 | 4 |
JT2030-75 | 3.0 | 8 | 75 | 4 |
JT2030-100 | 3.0 | 8 | 100 | 4 |
JT2035 | 3.5 | 10 | 50 | 4 |
JT2040 | 4.0 | 10 | 50 | 4 |
JT2040-75 | 4.0 | 10 | 75 | 4 |
JT2040-100 | 4.0 | 10 | 100 | 4 |
JT2045 | 4.5 | 13 | 50 | 6 |
JT2050-5 | 5.0 | 13 | 50 | 5 |
JT2050 | 5.0 | 13 | 50 | 6 |
JT2055 | 5.5 | 13 | 50 | 6 |
JT2060 | 6.0 | 15 | 50 | 6 |
JT2060-75 | 6.0 | 15 | 75 | 6 |
JT2060-100 | 6.0 | 15 | 100 | 6 |
JT2070 | 7.0 | 17 | 60 | 8 |
JT2080 | 8.0 | 20 | 60 | 8 |
JT2080-75 | 8.0 | 20 | 75 | 8 |
JT2080-100 | 8.0 | 20 | 100 | 8 |
JT2090 | 9.0 | 25 | 75 | 10 |
JT2100 | 10.0 | 25 | 75 | 10 |
JT2100-100 | 10.0 | 25 | 100 | 10 |
JT2110 | 11.0 | 28 | 75 | 12 |
JT2120 | 12.0 | 30 | 75 | 12 |
JT2120-100 | 12.0 | 30 | 100 | 12 |
JT2120-150 | 12.0 | 30 | 150 | 12 |
JT2140 | 14.0 | 35 | 100 | 14 |
JT2160 | 16.0 | 40 | 100 | 16 |
JT2160-150 | 16.0 | 40 | 150 | 16 |
JT2180 | 18.0 | 40 | 100 | 18 |
JT2200 | 20.0 | 45 | 100 | 20 |
JT2250 | 25.0 | 45 | 100 | 25 |
